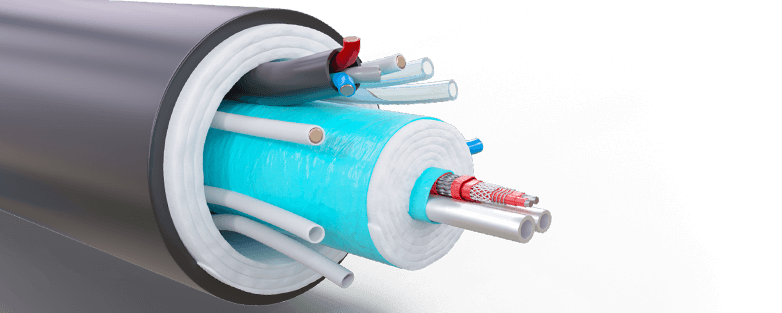

CUSTOM CEMS AND ANALYZER SAMPLE LINES

TubeTrace® Heated Instrument Tubing and Non-Heated Tubing Bundles are available in a variety of configurations.  Your CEMS and Analyzer sample lines will be cost-effective and reliable
with Thermon. Thermon's flexible manufacturing process can include auxiliary conductors, non-heated tubes, factory installed temperature sensors, a variety of heat tracing options, special markings and identification as required.

Custom tubing bundles are also available for CEMS (Continuous Emissions Monitoring Systems) and process analyzer applications for heated umbilicals.

Electrically Heated Tubing Bundles

Tube Trace with BSX - designed to provide freeze protection or temperature maintenance for tubing where no “steam out” of the tubing is possible. BSX withstands temperature exposures of 85°C (185°F).

Tube Trace with FP -  constant watt heat tracing, is designed to provide freeze protection or temperature maintenance for tubing.

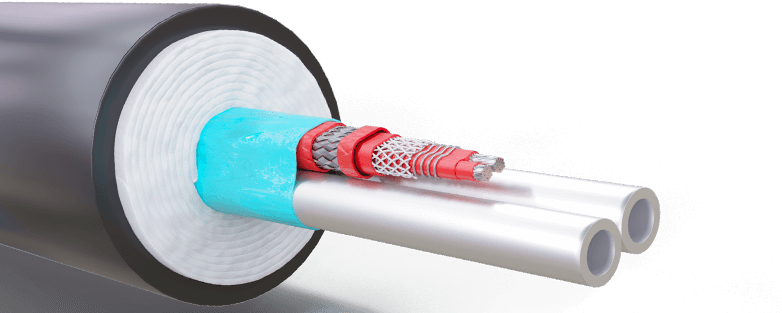

Tube Trace with HPT - HPT power-limiting heat tracing, is designed to provide freeze protection or temperature maintenance for tubing where high temperature exposure capability is possible. HPT withstands temperature exposures of 260°C (500°F).

Tube Trace with HTSX - HTSX self-regulating heat tracing, is designed to provide freeze protection or temperature maintenance for tubing where high temperature exposure capability is possible. HTSX withstands temperature exposures of 250°C (482°F).

Tube Trace with MIQ - MI heat tracing, is designed to maintain high temperatures or provide freeze protection where high temperature exposure is possible. MIQ withstands temperature exposures of 593°C (1,100°F).

Tube Trace with VSX-HT - VSX-HT self-regulating heat tracing, is designed to provide freeze protection or temperature maintenance for tubing where high temperature exposure capability is possible. VSX-HT withstands intermittent temperature exposures of 250°C (482°F).

STEAM OR FLUID HEATED TUBING BUNDLES

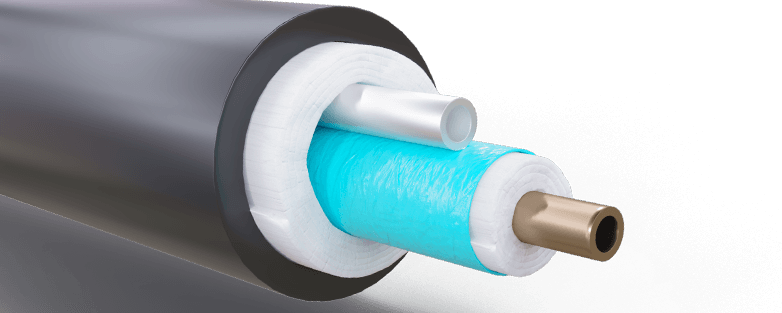

TubeTrace® Type SI/MI - Freeze protection or process temperature maintenance with a tube temperature range: 5°C to 121°C (40°F to 250°F). Designed to provide freeze protection or temperature maintenance for metallic and non-metallic tubing with “light” steam trace, TubeTrace Type SI/MI is suitable for use with process analyzers, emissions analyzers, and impulse lines to flow or pressure transmitters where steam or hot liquid is the preferred heating media.

TubeTrace® Type SP/MP - Freeze protection or process temperature maintenance with a tube temperature range: 5°C to 205°C (40°F to 250°F). Designed to provide freeze protection or temperature maintenance for metallic and non-metallic tubing with “heavy” steam trace, TubeTrace Type SP/MP is suitable for use with process analyzers, emissions analyzers, and impulse lines to flow or pressure transmitters where steam or hot liquid is the preferred heating media.

PREINSULATED TUBING

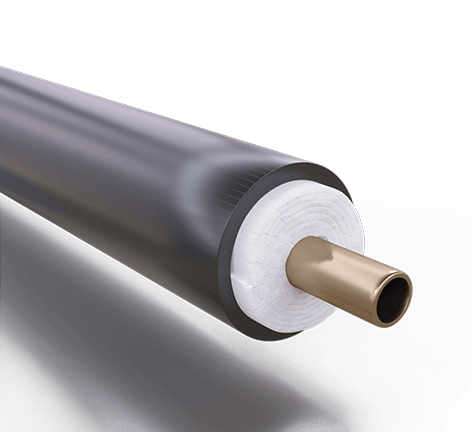

ThermoTube® Type SL - ThermoTube is a single insulated tube ideally suited to transport hot or cold liquids or gases. It was specifically developed for steam supply and condensate return lines, and is also used as an un-heated sample line.

ThermoTube® Type SL - HT, HTX & HTX2 - ThermoTube Pre-Insulated Tubing HT, HTX and HTX2 are non-heated tube bundles to transport high temperature steam / liquids or for sample lines and impulse lines to pressure instruments. These products are used where heat tracing is deemed unnecessary such as indoors or in climates that do not experience subfreezing temperatures. They limit heat losses for energy conservation and provide personnel protection by limiting outer jacket temperatures.

Electric Heat Trace Cables

Thermon offers a wide range of electric heat trace cables to cover all of your heat trace needs.  Weather its for freeze protection, process maintain temp, metalic piping, tanks or equipment Thermon has you covered.

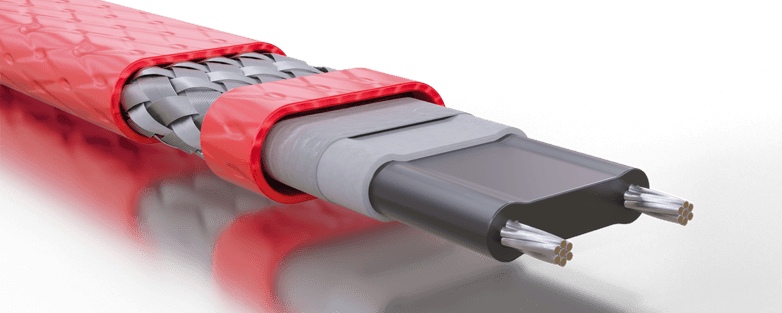

Self-Regulating Heating Cable: BSX, DLX, FLX, HSX, HTSX, KSR, KSX, RGS, RSX 15-2, USX, VSX-HT

Constant Watt Heating Cables:  FP, HTEK, MIQ, TEK, TESH

Power Limiting Heating Cable: HPT

CONTROLS & MONITORING

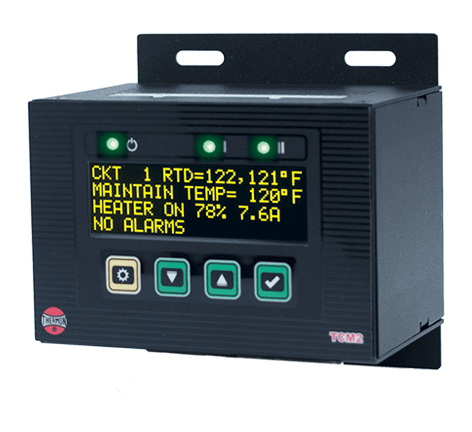

TraceNet™ TCM2 - The TraceNet TCM2 is a microprocessor based temperature control and monitoring module developed specifically for heat tracing applications.  The unit provides control and monitoring capabilities via digital information display for one or two heat tracing circuits with input from up to two RTDs per circuit.

TCM2 Specification Guide

POWER BLANKET

Power Blanket is a division of Thermon that designs and builds heating blankets and chilling products for a wide range of industries and temperature problems.
From construction to manufacturing, Powerblanket products make equipment last longer, projects stay on track, and fluids flow smoothly.  You can rely on Powerblanket yearround
to prevent costly setbacks and increase productivity. No matter your temperature challenges.

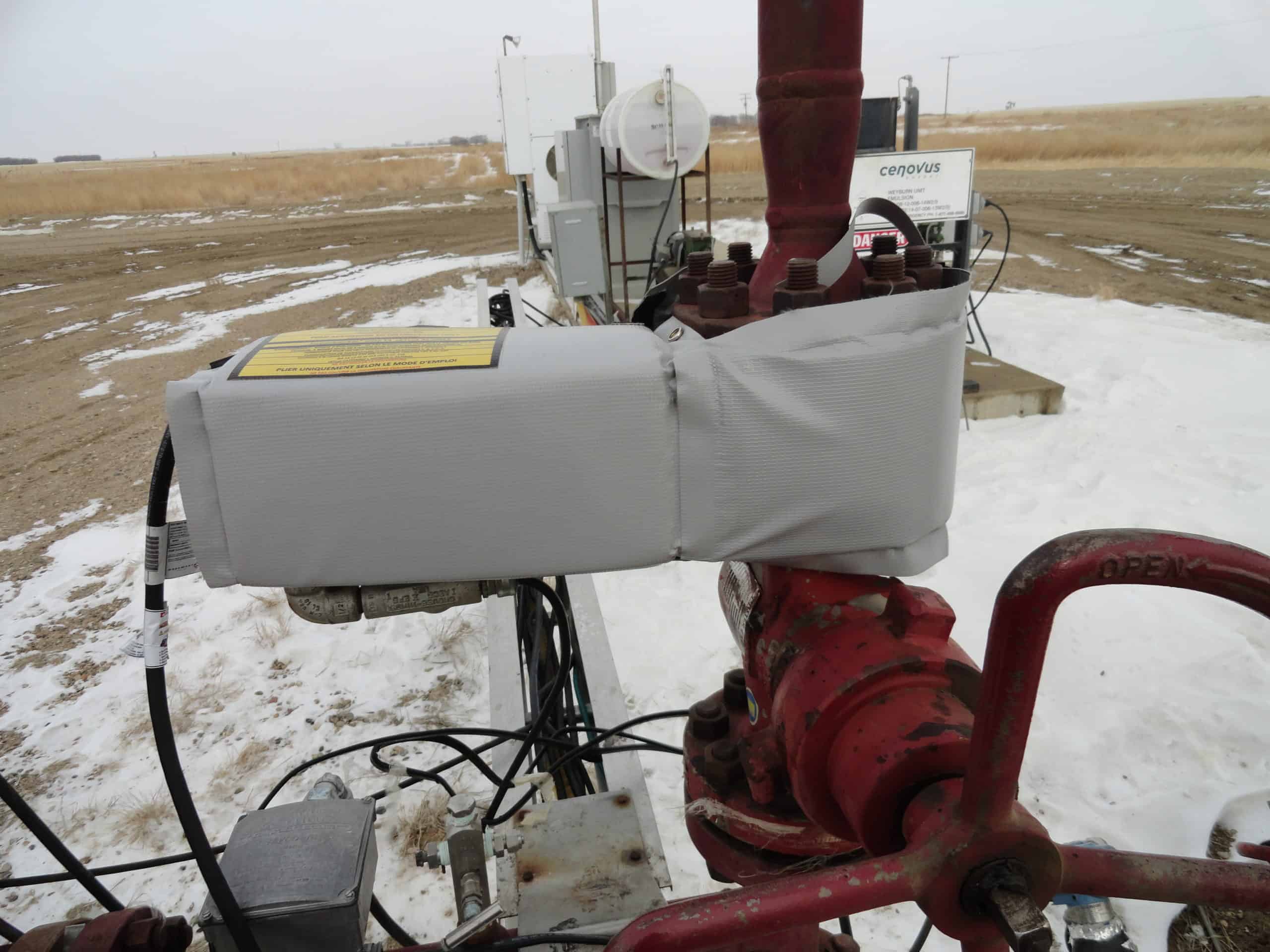

Hazardous location rated electrically heated removable insulation blankets custom sized for your equipment.

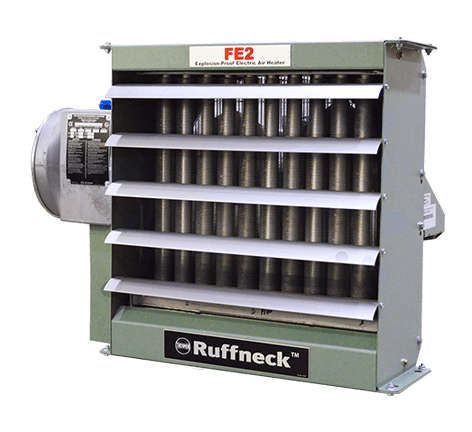

Ruffneck Heaters for the Harshest Enviroments

Explosion Proof Convection Heater

Explosion Proof Duct Heater

Explosion Proof Exhaust Fan

Explosion Proof Unit Heaters

Unit Heater

Washdown Heater

Norseman Heaters

XB - Explosion-Proof Natural Convection Heater - The Norseman™ XB Explosion-Proof Natural Convection Heater is designed for heating applications where explosive substances may be present, such as control cabinets and small enclosures, storage rooms for paints and cleaners, grain elevators, flour mills, spray booths, gas plants, pump houses, oil platforms, cleaning and dyeing plants, and marine/offshore areas.

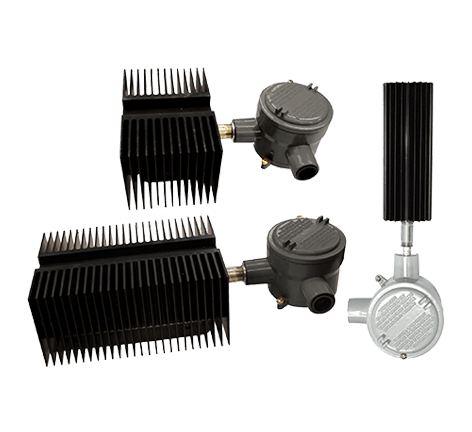

XPA - Explosion-Proof Panel Heater - The Norseman™ Explosion-Proof Panel Heater is designed specifically for freeze protection of control enclosures in locations where explosive atmospheres exist, such as control cabinets.

XGB - Explosion-Proof Forced Air Unit Heater - The Norseman™ XGB Explosion-Proof Forced Air Unit Heater is specifically designed for heating industrial spaces where potentially explosive substances may be present, such as water and sewage treatment plants, oil refineries, compressor stations, pulp and paper mills, paint storage booths, cement plants, mines, and marine/offshore areas.

Caloritech - Engineered Electric Heat

Immersion Heaters - Wide range of immersion heaters, flanged, and specialty

Elements and Specialty Heaters - circulation heaters, control panels, enclosure heater, specialty solutions

Air and Space Heaters - convestion heaters, Duct Heaters, Unit Heater, Washdown Heater

Boilers & Calorifiers - Boiler Feed Pump, Boilers, Calorifiers, Circulation Heater
