Perma-Cal Pressure Gauges

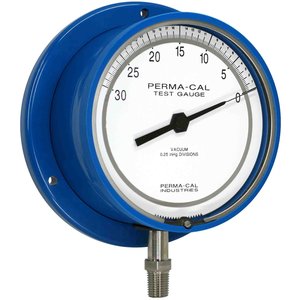

TEST GAUGES

Accuracy: ±.25% F.S.(Grade 3A)*

Test gauges feature a knife-edged pointer for precision readings and include calibration certificates.

Typical Applications

• Industrial applications

• Energy & power plants

• Pump applications

• High-Temp media pumps

• Steam pipes

• Oil pipelines

• Petrochemical plants

• Refineries

• Asphalt equipment

• Manufacturing facilities

• Factories, and more…

Range Availability

• 15psi to 15,000psi (or equivalent)

Range Types

• Single Scale

• Dual Scale

• Vacuum and Compound

Range Units

• psi

• bar

• kPa

• MPa

• kg/cm²

Process Gauges

Accuracy: ±.5% F.S.(Grade 2A)
OR
±.5% Mid-Scale/±1% F.S.*

Process gauges feature bold lettering and an easy read pointer.

Product Line Specifications

• Direct Drive Design (helically-wound Bourdon tube)

• No liquid fill (internally dampened)

• Solid front case

Case Material:

• ABS (acrylonitrile butadiene styrene)

• Metal Cases: Stainless Steel or Aluminum

• Glass-Filled Nylon: High-Temp Yellow Turret Style

• Metal Case Finish: Powder Coated or Unpainted

• Window Construction: Acrylic or Tempered Glass (increases heat tolerance)

Media Temperature:

• ABS: -65°F to 250°F

• High-Temp Turret and Metal: -65°F to 600°F

Ambient Temperature Tolerance:

• ABS: -65°F to 190°F

• High-Temp Turret and Metal: -65°F to 400°F

• Burst Pressure: 500% F.S. pressure or 25,000 psi

• Fitting Material: 316 Stainless Steel

Wetted Materials:

• Stainless Steel 300-series

• Inconel X-750

• Silver Braze (Nickel Braze if specified)

Overpressure without calibration shift:

• 50% for gauges ≤5,000 psi or equivalent

• 25% for gauges >5,000 psi or equivalent

Equivalent to an Ashcroft 1290 Direct Drive

Equivalent to Wika 232.34

Welded Diaphragm Seals

Direct drive gauges have a much smaller internal volume making them ideal for use with a diaphragm seal.  Ideal for use on processes which are corrosive, viscous, unrefined or unfiltered.  Prevents media from clogging the Bourdon tube.

• Available in threaded or flanged connection sizes
• Many materials including: stainless, Hastelloy C, Monel, Tantalum, and PTFE
• Different Fill fluids avaialble including: Silicone, Halocarbon, and more.

Perma-Cal Technical Advantages over Conventional Pressure Gauges

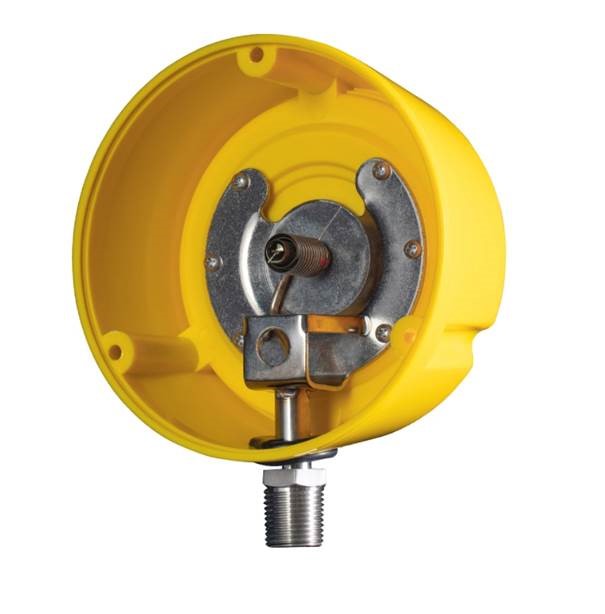

Principle of Operation  Perma-Cal pressure gauges operate on the unique principle of direct drive, which uses a single, helically wound bourdon tube made of Inconel X-750.  Inconel was chosen for its elasticity as well as its excellent resistance to corrosion.  All other wetted parts are stainless steel.

 Only one moving part   Since there are no springs, gears, sectors or linkages (metal to metal contact), there are no components to wear out. Component wear accounts for more than half of all gauge failures.

Permanent Calibration  The complete absence of gears and linkages enables the Perma-Cal pressure gauge to be “permanently calibrated”.  Hence, that’s where their name came from.

Safest pressure gauge in the industry  The cross sectional area of the helical bourdon tube is approximately 1/100^th the size of traditional “C” type bourdon tubes. In the event of a catastrophic failure of the helical bourdon tube, the small cross section of the bourdon and capillary tubes guarantee a low flow rate.

Over Pressure & Vacuum Protection  Perma-Cal can withstand over-pressures to 150% of full-scale and a complete vacuum without degradation.  Most competitors offer over pressure up to 130% of full scale with no vacuum protection.
