WIKA 232.34 DIRECT DRIVE EQUIVALENT IN STOCK Perma-Cal Pressure Gauges

We stock Direct Drive Gauges in Houston EQUIVALENT TO WIKA 232.34

Perma-Cal

This email address is being protected from spambots. You need JavaScript enabled to view it.

Ranges in Stock

0-60 PSIG
0-100 PSIG
0-150 PSIG
0-160 PSIG
0-200 PSIG
0-300 PSIG
0-400 PSIG
0-500 PSIG
0-600 PSIG
0-800 PSIG
0-1,000 PSIG
0-1,500 PSIG
0-2,000 PSIG
0-3,000 PSIG

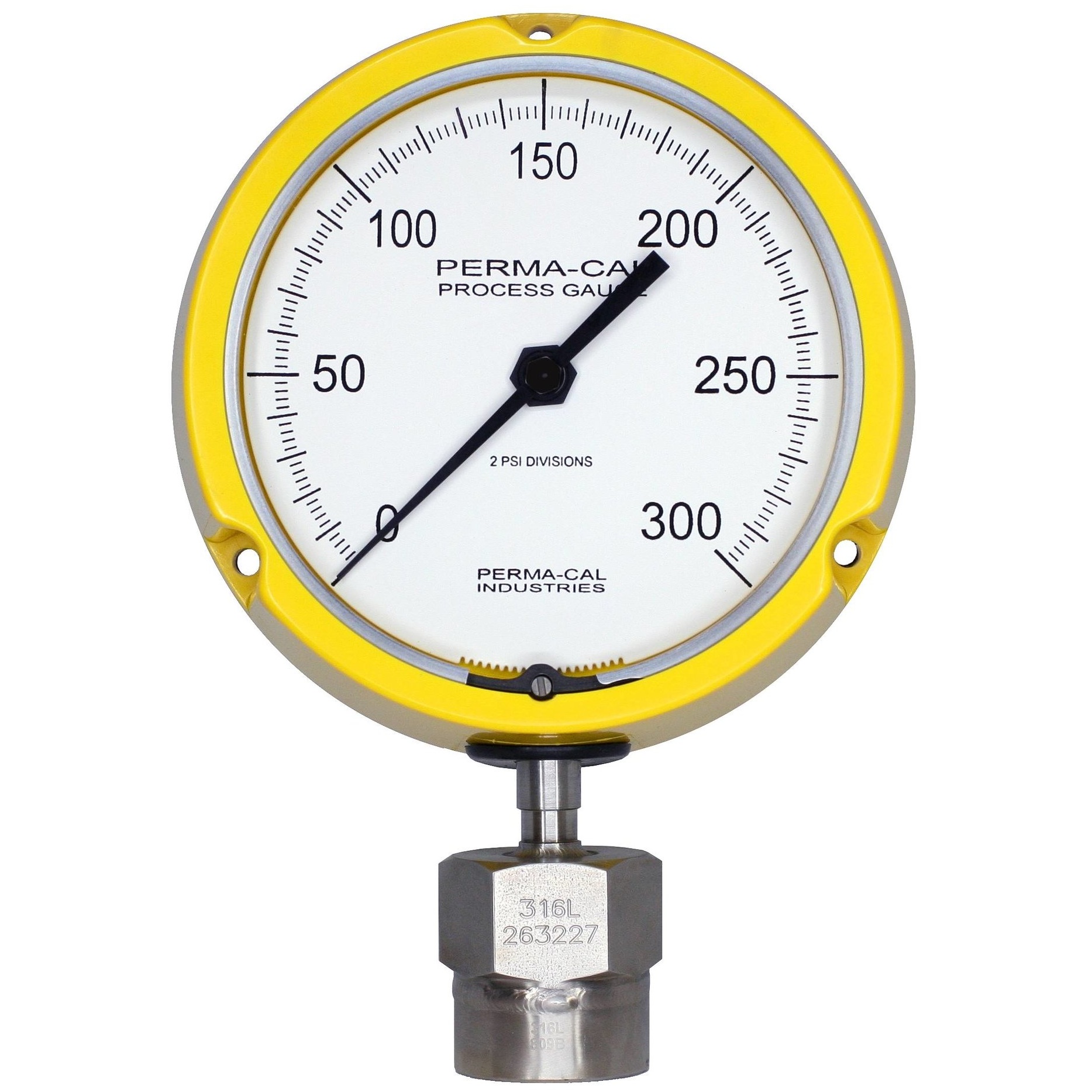

Process Gauges

Accuracy: ±.5% F.S.(Grade 2A)
OR
±.5% Mid-Scale/±1% F.S.*

Process gauges feature bold lettering and an easy read pointer.

Product Line Specifications

  • Direct Drive Design (helically-wound Bourdon tube)

  • No liquid fill (internally dampened)

  • Solid front case

Case Material:

  • ABS (acrylonitrile butadiene styrene)

  • Metal Cases: Stainless Steel or Aluminum

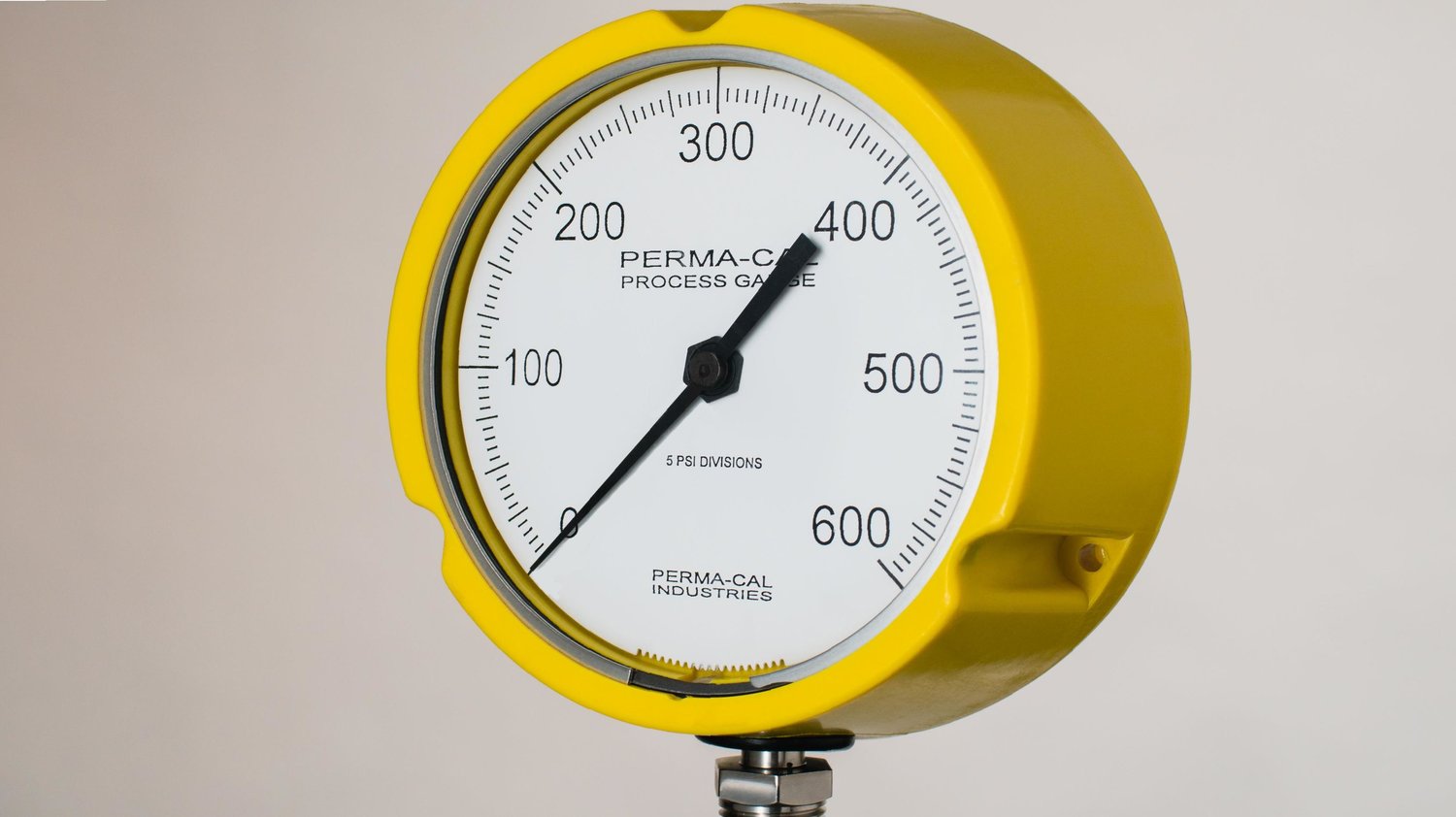

  • Glass-Filled Nylon: High-Temp Yellow Turret Style

  • Metal Case Finish: Powder Coated or Unpainted

  • Window Construction: Acrylic or Tempered Glass (increases heat tolerance)

Media Temperature:

  • ABS: -65°F to 250°F

  • High-Temp Turret and Metal: -65°F to 600°F

Ambient Temperature Tolerance:

  • ABS: -65°F to 190°F

  • High-Temp Turret and Metal: -65°F to 400°F

  • Burst Pressure: 500% F.S. pressure or 25,000 psi

  • Fitting Material: 316 Stainless Steel

Wetted Materials:

  • Stainless Steel 300-series

  • Inconel X-750

  • Silver Braze (Nickel Braze if specified)

Overpressure without calibration shift:

  • 50% for gauges ≤5,000 psi or equivalent

  • 25% for gauges >5,000 psi or equivalent

Welded Diaphragm Seals

Direct drive gauges have a much smaller internal volume making them ideal for use with a diaphragm seal.  Ideal for use on processes which are corrosive, viscous, unrefined or unfiltered.  Prevents media from clogging the Bourdon tube.

  • Available in threaded or flanged connection sizes
  • Many materials including: stainless, Hastelloy C, Monel, Tantalum, and PTFE
  • Different Fill fluids avaialble including: Silicone, Halocarbon, and more.
