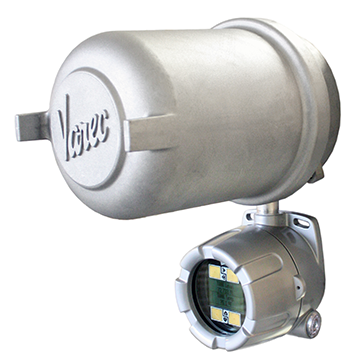

VAREC 8920 Loop Powered Transmitter
Replaces the obsolete 8200 COT see obsolescence letter from Varec
Documents:
Highlights
- Digital display with capacitive touch control interface provides
inventory information at the tank side and configuration of the
transmitter for all connected devices - Easy in-service installation – mounts directly to most mechanical tank gauges, including Varec, L&J, and GSI
- Activate alarms or relays with; 2-4 SPDT cam-operated switches (as option)
- Approved for hazardous areas: cFMus, ATEX, IECEx, UKEx
Applications
For use in inventory management applications, the 8920 Loop Powered Transmitter (LPT) is a precision transmitter designed to relay level or level & temperature information via field communications to the control room. Changes in liquid level and tank temperature are output to a 4-20 mA signal, or via HART (pending). The 20-to-48 DC voltage required for operation may be supplied by the user or through an optional 85-to-305 VAC on-board power supply. Two or four cam-operated switches that can be utilized for indication of alarms or relays are also available as an option.
On Your Tank

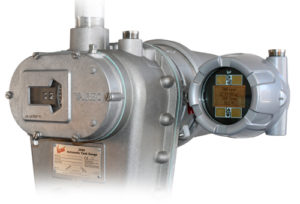

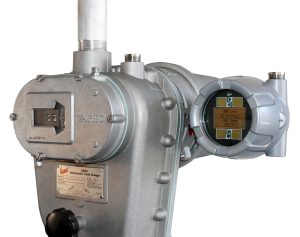

The 8920 LPT is easy to install. It mounts directly to most mechanical tank gauges (Varec, GSI, L&J, Sakura).

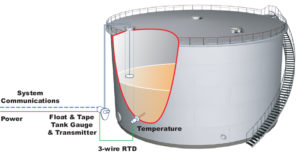

Complete Tank Gauging System
The 8920 LPT integrates ancillary equipment, and sensors, and provides the first steps to automation and control. It provides an on‐board 3‐wire RTD temperature input. It can activate alarms, SPDT cam-operated outputs, and software-driven contact outputs.
