SOR MAGNETIC LEVEL GAUGE INDICATOR

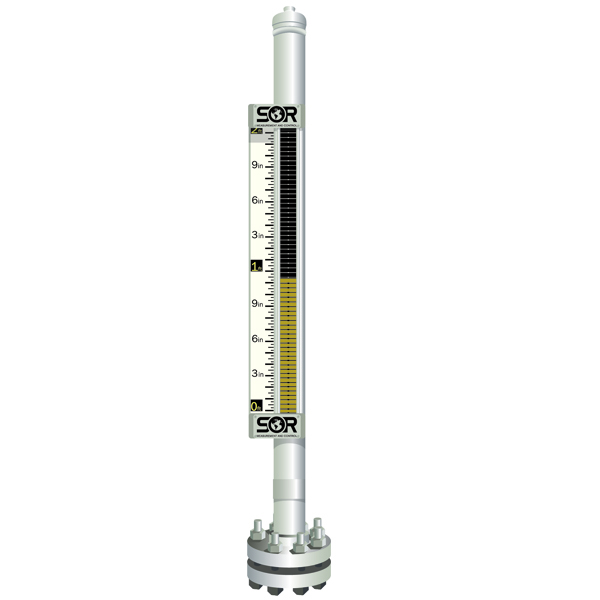

SOR 1100 Series Magnetic Level Indicators

The SOR® 1100 series magnetic level indicator leverages decades of experience building pressure vessels and pairs it with an industry-leading indicator design to provide a clear and reliable indication of any process liquid.

The 1100 series gauge is a great alternative to traditional sight glasses since the vessel contents are totally contained within the float chamber making it ideal for high-pressure systems. External point level switches or continuous level transmitters such as guided wave radar or a magnetostrictive level transmitter can easily be incorporated into the system without breaking the pressure boundary or disturbing any existing piping.

The 1130 vista™ indicator (U.S. Patent #14/638,990) offers an industry-leading 200º viewing angle as well as a 250-foot forward viewing distance.

Download Spec Sheet

Common Applications

Applications include but are not limited to:

Oil/water separators
Flash drums
Surge tanks
Gas chillers
Vacuum tower bottoms
Alkylation units
Propane vessels
kerosene tank level
slug catcher
Boiler Feed Water
Condenser Hotwell Level
And storage tanks

Additional Information

Patented vista™ indicator with 200º viewing angle
Forward viewing distance of 250 feet or more
Chambers designed to ANSI/ASME codes B31.1 and B31.3 guidelines
Schedule 40 316/316L stainless steel construction standard, Schedule 10-160, and other materials available
ASME Section IX and AWS-qualified welding process
Full penetration welds
No pressurized floats
High visibility reflective scale or custom 316SS scale
Optional heat tracing and insulation blankets
Interface detection capability
NACE and CRN certifications available
Cryogenic chamber designs available
Dimensional drawings available at the quotation
Units arrive ready to install with all auxiliary products assembled and calibrated
Quick delivery
Dependable operation for years of service
5-year warranty on chamber
