Metrix Seismic Transmitters

ST5484E VELOCITY TRANSMITTERS

The Metrix ST5484E is a self-contained, loop-powered seismic velocity transmitter that incorporates a piezo-electric accelerometer, signal integrator, RMS peak detector, and 4-20 mA signal conditioner into a single, robust package. The transmitter can be mounted directly on the machine case or bearing housing without need of any intervening signal conditioning equipment.  Its 4-20 mA output signal is compatible with most industrial process control instrumentation such as PLCs, DCSs, and SCADA systems, allowing trending and/or alarming capabilities for a simple, economical vibration monitoring solution. The transmitter is also available in a 4-wire version where the extra two conductors provide direct access to the raw acceleration signal, facilitating easy connection to portable data collectors and analyzers.

ST5491E INDICATING VIBRATION TRANSMITTERS & SIGNAL CONDITIONERS

This indicating vibration transmitter and signal conditioner in a single package built to provide years of reliable service. The ST5491E is the ideal solution for sensing vibration on most plant equipment. A simple two-wire loop signal proportional to velocity is generated for transfer to a programmable logic controller (PLC), distributed control system (DCS) or other 4-20 mA input devices. Simply mount the transmitter on the machine case, connect the 2-wire loop and read and/or record the vibration. Each transmitter is manufactured the way you want it: one of 3 electrical connections, epoxy or hermetically sealed, mounting stud, frequency range, full scale output and level of certification.

ST6900 Compact Series - Vibration Transmitter

ST6900 Series case mounted transmitters interface directly with PLC, DCS and 4-20 mA input monitors. Their compact size allows for installation in tight places. Model ST6911 is 4-20 mA proportional to acceleration while Model ST6917 is proportional to velocity. They feature Metrix proprietary Independent Polarity Terminals which allows for error-free wiring. These transmitters have a stable detection circuit available due to built-in protection against temperature shock and high accuracy at low frequencies by preventing the "ski slope" problem.

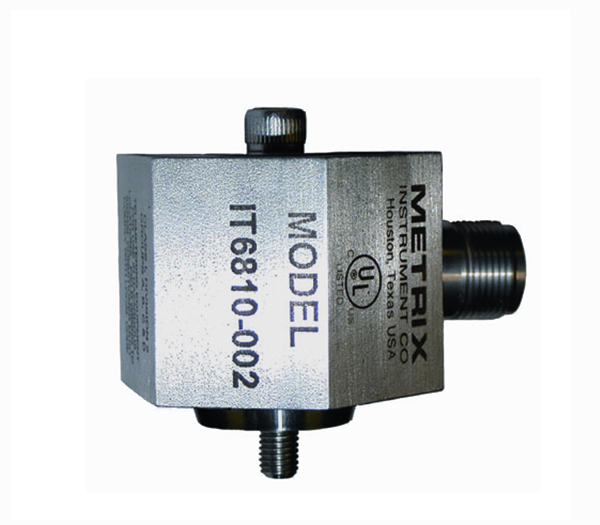

IT6810 Impact Transmitters

Impact Transmitter with integral signal conditioner. Measures mechanical looseness with the convenience of 4-20 mA loop powered sensor technology and a 2 pin MIL-C-5015 style connector.

It has a built-in piezoelectric crystal sensing element, and uses a timing function as part of it’s severity determination. An impact event counter and memory device is used to record events meeting a preset amplitude threshold level.

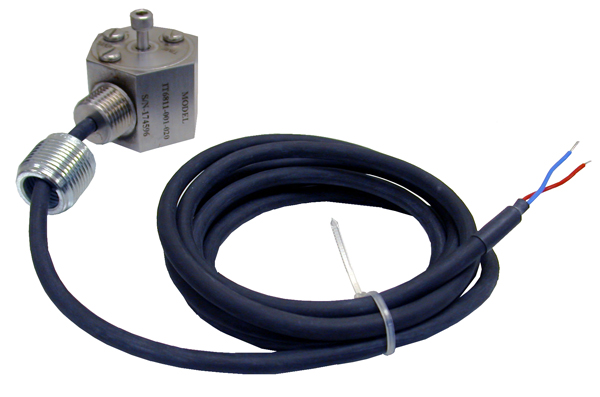

IT6811 Impact Transmitters

Impact Transmitter with integral cable twisted shielded pair 20 AWG black polyurethane jacket, 1/2-14 NPT connection.

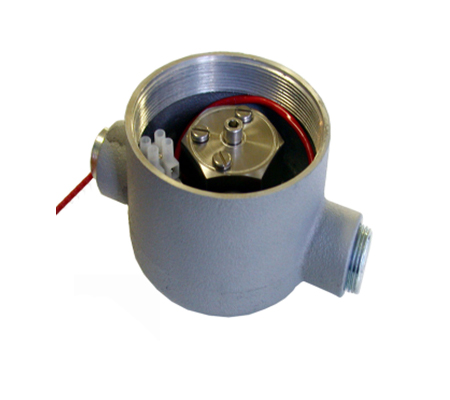

IT6812 Impact Transmitters

9288-series EP housing and mounting kit. Class 1, Div 1 Area.

IT6812-XXX-003: Contains .3 meter pigtail

Product Aprox. Weight:  340 g (0.75 lb) Add 226 g (0.5 lb) for every 5 ft of cable.

162VTS Slim Vibration Transmitters

The 162VTS vibration transmitter is the ideal solution for sensing vibration on most plant equipment. It generates a two-wire loop signal proportional to velocity for transfer to a programmable logic controller (PLC), distributed control system (DCS) or other 4-20 mA input devices. Simply mount the transmitter on the machine case, connect the 2-wire loop and read and/or record the vibration.

Product Aprox. Weight: 0.7 kg (1.5 lbs)
