Line Regulators
Cyclinder Regulators
Semi-Auto cross-over Regulators
Single Stage Regulators
Dual Stage Regulators

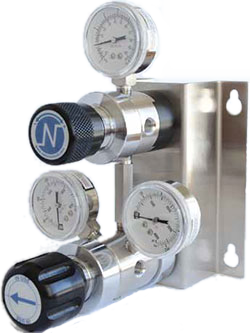

The Series 44 semi-automatic changeover provides an uninterrupted supply of gas to your instrumentation or process. Incorporating two Neon Series 10 regulators into one body minimizes space requirements while providing the high purity construction of the Series 10. The outlet of this assembly feeds another Series 10 regulator to provide final regulation for your application. When the primary source bottle reaches the preset crossover point the secondary bottle automatically takes over. Turning the indicator knob so that the arrow points to the now-active source bottle allows replacing the original primary cylinder, which will then take over automatically when the secondary bottle is depleted. A wide variety of options such as pigtails, CGAs, check valves, pressure switches, and outlet valves allow you to customize this item to your specific requirements. Typical Applications Wherever a continuous supply of cylinder gas is required Features and Benefits Compact, economical design with mounting bracket Wide variety of construction materials, Cv values, outlet ranges, and other options 2 year factory warranty Spec Sheet

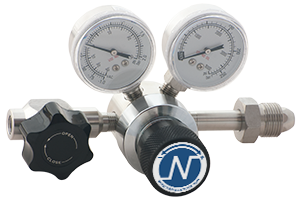

Series 10 & 15 Neon 10 and 15 Series are compact, lightweight, high purity, single stage, pressure reducing regulators for specialty, flammable, and industrial gasses or liquids. We offer a multitude of outlet pressure, seat material, and flow coefficient options. Our sensitive, long life, 316L stainless steel diaphragms insure gas purity and integrity. We offer a wide variety of body materials, porting options, and connections to meet your specific needs, while minimizing the internal unswept volume of the regulator. Regulators can be supplied with options such as installed pressure gauges, valves, and CGA assemblies. Typical Applications Laboratory and Point-of-Use Gas systems in medical, pharmaceutical, food and beverage, and other high purity gas applications Process analyzer gases, metal fabrication, petrochemical, and specialty industrial gas cylinders Features and Benefits Simple poppet and seat design for easy maintenance 10 micron filter element to protect the regulator seat 3 point sub-seat seal protects against leakage 2 year factory warranty

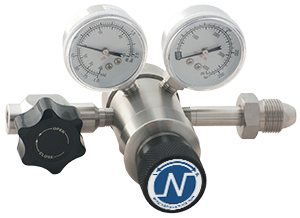

Series 85 The Neon 85 Series is a compact, lightweight, high purity, dual stage, pressure reducing regulator for specialty, flammable, and industrial gasses or liquids. We offer a multitude of outlet pressure, seat material, and flow coefficient options. Our sensitive, long life, 316L stainless steel diaphragms insure gas purity and integrity. We offer a wide variety of body materials, porting options, and connections to meet your specific needs, while minimizing the internal unswept volume of the regulator. Regulators can be supplied with options such as installed pressure gauges, valves, and CGA assemblies. Typical Applications Laboratory and Point-of-Use Gas systems in medical, pharmaceutical, food and beverage, and other high purity gas applications Process analyzer gases, metal fabrication, petrochemical, and specialty industrial gas cylinders Features and Benefits Simple poppet and seat design for easy maintenance 10 micron filter element to protect the regulator seat 3 point sub-seat seal protects against leakage 2 year factory warranty

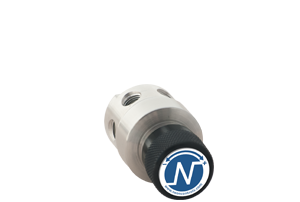

Series 12 The Neon 12 Series is a compact, lightweight, and high purity back pressure regulator. Our sensitive, long life, 316L stainless steel diaphragms and a Cv of 0.3 affords steady upstream control of pressure from low to moderate flow applications even with fluctuating flow conditions. It can be used for both gas and liquid applications. The large sensing diaphragm provides sensitive throttling action making the Series 12 a superior choice over a relief valve. We offer a wide variety of body materials, porting options, and connections to meet your specific needs while minimizing the internal unswept volume of the regulator. Regulators can be supplied with options such as installed pressure gauges and valves. Typical Applications Calibration equipment Gas and liquid sampling Purge and carrier gases Component testing Industrial controls Cryogenic dewars Features and Benefits 316L diaphragm Multiple Cv options 2 year factory warranty
