Krohne Radar Level Transmitters
Non-contact level measurement of liquids, pastes, granulates, powders and other solids
- Measuring distances up to 100 m / 328 ft
- Different antenna options, e.g. for corrosive or abrasive media, high pressure or temperature and applications with agitators
- Also suitable for hazardous areas, Functional Safety (SIL) or hygienic applications
Radar (FMCW) level transmitter for liquids in narrow tanks with internal obstructions
- Continuous, non-contact level measurement in small and narrow tanks with agitators as well as long nozzles
- 80 GHz radar, flush-mounted Lens antenna
- Measuring range: 0…100 m / 328 ft
- -50…+200°C / -58…+392°F; -1…40 barg / -14.5…580 psig
|  |
Radar (FMCW) level transmitter for powders and dusty atmosphere
- Continuous, non-contact level measurement in high and narrow silos, hoppers or containers
- 80 GHz radar, flush-mounted Lens antenna
- Measuring range: 0…100 m / 328 ft
- -50…+200°C / -58…+392°F; -1…40 barg / -14.5…580 psig
|  |
Radar (FMCW) level transmitter for agitated and corrosive liquids
- Continuous, non-contact level measurement in harsh environments
- 24 GHz radar, Horn or Drop antennas
- Measuring range: 0…100 m / 328 ft
- -50…+200°C / -58…+392°F, up to +700°C / +1292°F in non-ex applications; -1…100 barg / -14.5…1450 psig (higher on request)
|  |
Radar (FMCW) level transmitter for liquids in basic process applications
- Continuous, non-contact level measurement in closed tanks or in the open air
- 24 GHz radar, Horn or Drop antennas
- Measuring range: 0…100 m / 328 ft
- -50…+130°C / -58…+266°F; -1…16 barg / -14.5…232 psig
|  |
Radar (FMCW) level transmitter for liquids in storage and process applications
- Continuous, non-contact level measurement in storage and process tanks
- 10 GHz radar, Horn and Wave Horn antennas
- Measuring range: 0…30 m / 98 ft
- -60…+250°C / -76…+482°F; -1…40 barg / -14.5…580 psig (higher on request)
|  |

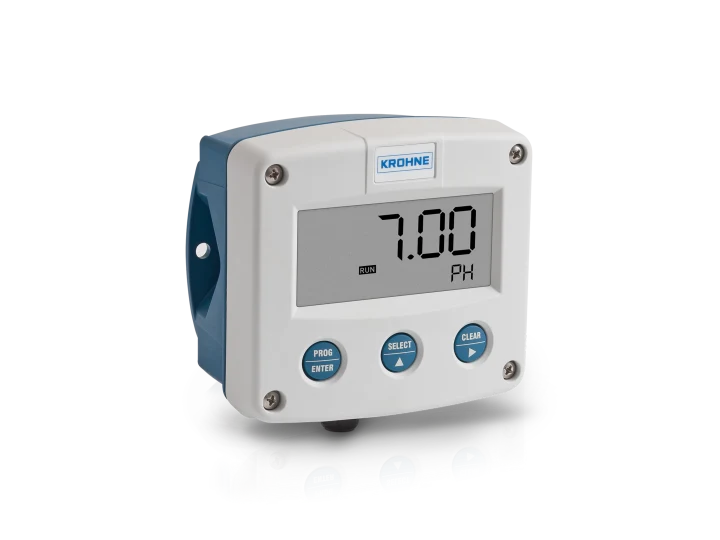

Remote display and control
- Loop powered, 4…20 mA, with signal calibration feature (passive), HART® 7
- With LCD display for wall or rack mount
- Power supply: 15…30 VDC (loop powered), 2 V voltage drop
|  |
