Guided WAVE radar (TDR) level transmitters

Contact level measurement of liquids, solids or liquid-liquid interfaces

OPTIFLEX 7200 Guided radar (TDR) level transmitter for advanced liquid applications Continuous level and interface measurement in process or storage tanks, reactors and pressure vessels Extensive choice of probes for harsh process conditions Measuring range: 0.3…60 m / 1…197 ft -50…+250°C / -58…+482°F; -1…100 barg / -14.5…1450 psig

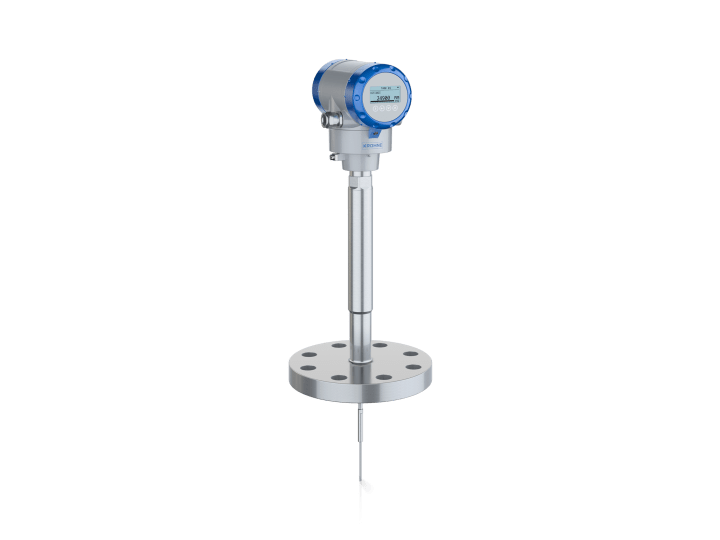

OPTIFLEX 8200 Guided radar (TDR) level transmitter for liquids at high temperature and pressure Continuous level and interface measurement in reactors and separators Single or double ceramic process seal system for demanding process conditions Measuring range: 0.6…60 m / 2…197 ft -50…+315°C; -58…+599°F; -1…320 barg; -14.5…4641 psig
OPTIFLEX 6200 Guided radar (TDR) level transmitter for solids from granulates to powders Continuous level measurement in buffer silos, bulk storage containers or hoppers Insensitive to dusty atmosphere and deposit on the probe Measuring range: 0.6…40 m / 2…131 ft  -50…+200°C / -58…+392°F; -1…40 barg / -14.5…580 psig
