BALSTON COMPRESSED AIR DRYERS

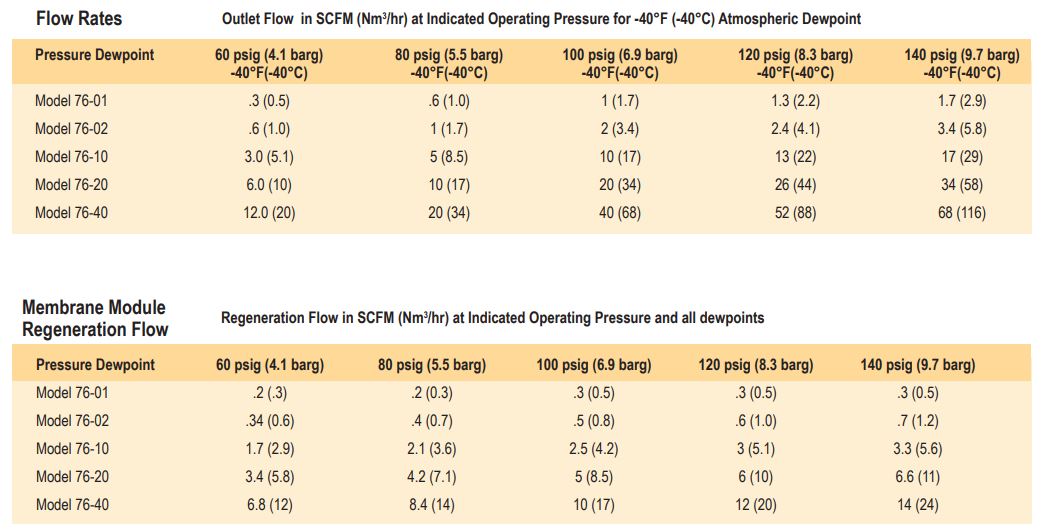

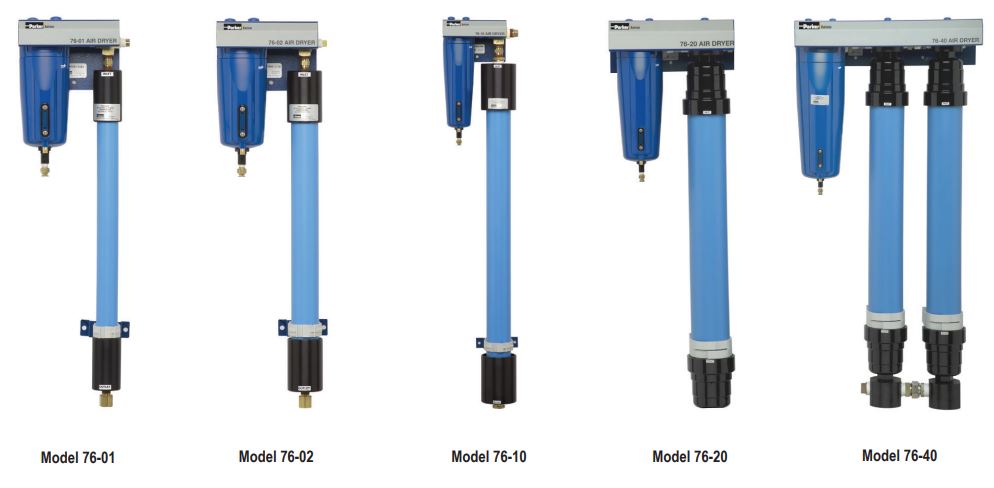

BALSTON MEMBRANE AIR DRYERS for -40 F Dewpoint

The 76-01, 76-02, 76-10, 76-20, and 76-40 Offer a reliable, efficient, and economcal alternative to pressure swing and refrigerant dryer technologies.

• Require no electricity thus loweringoperating costs
• Dewpoints as low as -40°F (-40°C)
• prevent freeze-ups
• Explosion proof
• Silent operation
• No desiccant to change

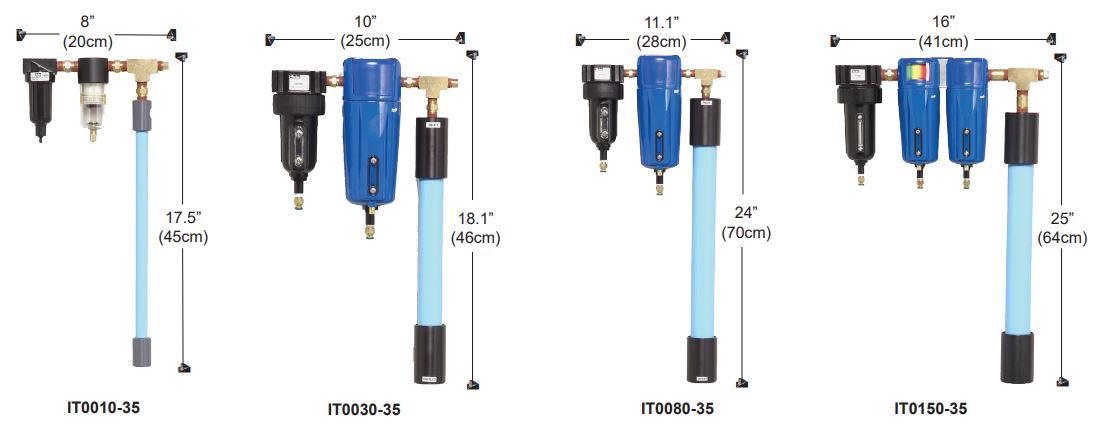

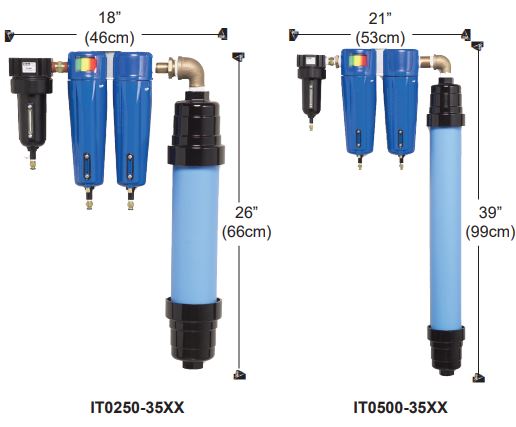

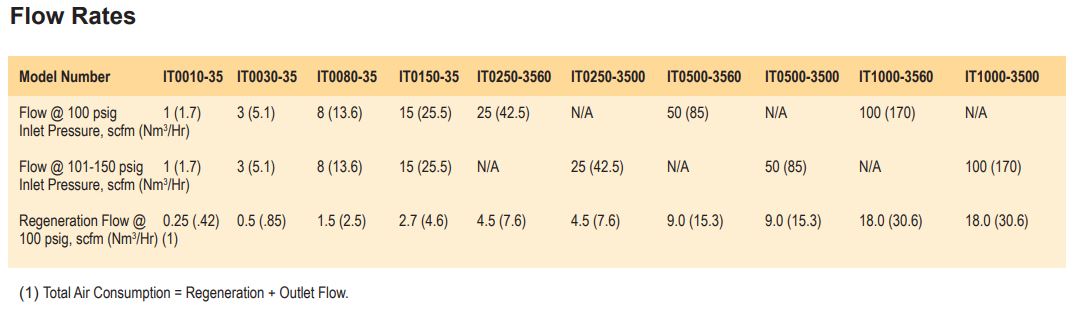

IT Series Membrane Air Dryers for +35°F

IT0010-35, IT0030-35, IT0080-35, IT0150-35, IT0250-3500, IT0250-3560, IT0500-3500, IT0500-3500, IT1000-3560, IT1000-3500 Offer a reliable, efficient, and economical alternative to pressure swing and refrigerant dryer technologies

• Require no electricity thus lowering operating costs
• Produce +35°F (2°C) pressure dewpoint, ideal for critical points of use
• Produce +15°F (-9°C) dewpoint in air systems with existing refrigerated air dryers
• No moving parts
• Silent operation
• No desiccant to change

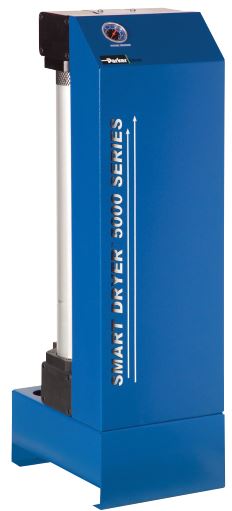

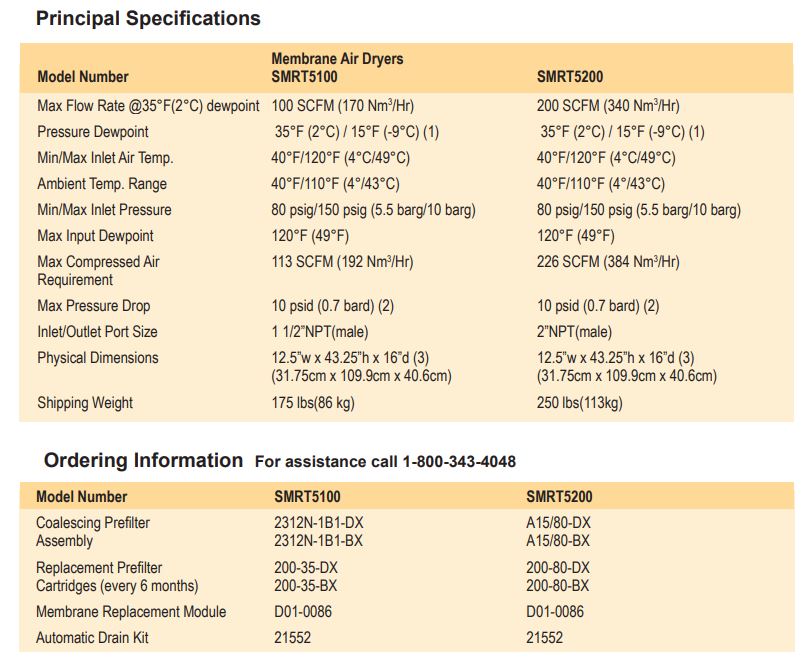

5000 Series Smart Dryer Membrane Air Dryers

• Operating costs are 35 - 40% less than a refrigerant air dryer*
• No electricity required
• State-of-the-art membrane technology
• Guaranteed 35°F (2°C) pressure dewpoint - 13% dryer than refrigerant dryers
• Guaranteed 15°F (-9°C) in air systems equipped with a refrigerant air dryer
• Durable - will hold up to the dirtiest compressed air system
• No requirement for costly maintenance contracts
• Output capacities to 200 scfm (340Nm3/Hr) **
• Complete system with prefilters, autodrains, and pressure indicators

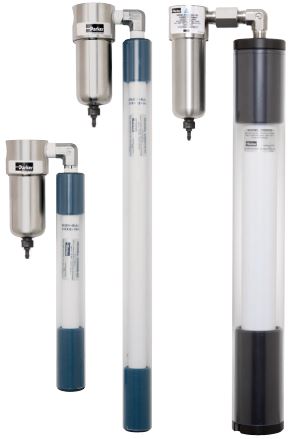

Balston Membrane Cabinet Dryer

• Designed specifically for wash down areas
• Protects electrical cabinet components from damage caused by water and high humidity
• Minimizes pools of water inside cabinets
• Positive pressure keeps dust out
• Adds no heat to the cabinet
• Reduces cabinet humidity to less than 10% RH
• Requires no electricity, low operating costs
• Easy to install and maintain
• Quiet operation
• Protect motors, touch screens, drives and other critical components

Watch time lapse video demonstation

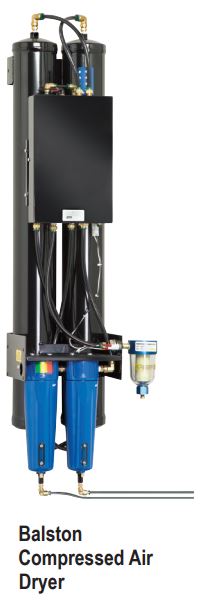

PSA Air Dryer 75-A20

• Reduce the dewpoint of compressed air to -100°F (-73°C)
• Unattended 24 hour operation
• Lightweight and compact
• No desiccant to change

Balston regenerative PSA desiccant dryer reduces the atmospheric dewpoint of compressed air without operator attention. Model 75-A20 will reduce the dewpoint to -100°F (-73°C). The dryer is delivered complete and ready for easy installation. The dryer has coalescing prefilters with automatic drains, PSA drying towers, a particulate final filter, a moisture indicator, differential pressure indicator, and pretested controls.
The Balston regenerative dryer has safe, 12 VDC electrical controls. To install, simply attach the inlet (60 psig/4.1 BARG minimum) and outlet air lines, plug the electrical transformer into a wall outlet - no electrician required - and the unit is ready for trouble-free
operation.
This reliable dryer can be easily installed, operated, and maintained by personnel not trained in instrumentation.  The Balston dryer is useful when air comes into contact with moisture-sensitive materials, or when outside compressed air lines are subjected to sub-freezing temperatures.
The 75-A20 is a wall mountable unit. It has a 10 SCFM(17 Nm3/hr)/min. (283 lpm) capacity (at 100psig/6.9 BARG inlet pressure).

Applications:

Pneumatic Tool Stations
HVAC Systems
Purge Electrical Boxes
Air Lines Subject to Sub-Freezing
Temperatures
Blanketing Moisture Sensitive Materials
Spray Painting
Pneumatic Instrumentation
Robotics
Lasers
Dry Boxes
