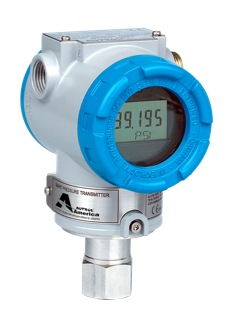

The APT 3200 Smart Pressure Transmitter is a microprocessor-based “smart” pressure transmitter. It uses a piezoelectric pickup optimized & accurately characterized to compensate for ambient temperature effects with a patented temperature compensation algorithm that ensures for high precision & long-term stability in gauge and absolute pressure measurements over a wide range of operating conditions. APT 3200 is a two-wire loop power transmitter and has a standard 4/20mA output scaled for desired output pressure range.
Function
- Type: Gauge/ Absolute(PIT), Level (LIT), High Static pressure
- Certificate: SIL2 (TUV, FMEDA), Ex d, Ex ia, FM, ATEX, TR CU(EAC), INMETRO, CE, Rohs, BV, LR, KR, DNV, ABS, KCs, IP66/67, NEMA 4X
- Feature: 4 to 20mA, HART, Loop Powered
- Accuracy:± 0.075% (option ± 0.04%) of CS* 3 lines LCD display, Self Diagnostic Function, External Buttons, DAC, Zero Trim, Eng mode
- Application: Pressure, Level measurement for Oil & Gas(up & downstream), Liquid, Water, Maine & offshore, Vessel, Power, Chemical Plants, and Refinery
- High Accuracy: ±0.075% of Calibrated Span (option: ±0.04% of Calibrated Span)
- Long-Term Stability
- High Rangeability (100:1)
- Measuring GP, AP
- Data Configuration with HART configurator
- Continuous Self-Diagnostic Function
- Automatic Ambient Temperature Compensation
- Fail-mode Process Function
- EEPROM Write Protection
