AMI 210BX Percent Oxygen Analyzer

Model 210BX

Best In Class Percent Oxygen Analyzer

The MODEL 210BX is AMI’s most advanced Percent Oxygen Analyzer. This next generation unit combines patented technologies and superior design to deliver unsurpassed performance and reliability while keeping costs low. The MODEL 210BX is the #1 choice among engineers and measurement technicians.



model 210bx dimensions

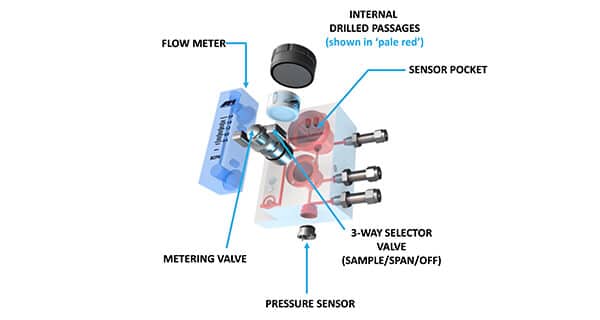

eliminator call block callouts

ELIMINATOR CELL BLOCK For A Leak-Free Design

The patented ELIMINATOR CELL BLOCK provides a unique, compact sample system approach and a flow-efficient sensor pocket machined into a solid metallic block. Precision cross-drilled intersecting gas passages eliminate the need for long lengths of tubing and leak-prone compression fittings. Additionally, a uniquely engineered 3-way selector valve (Sample/Span/Off), metering valve, pressure sensor and flow meter are all integrated into the ELIMINATOR CELL BLOCK. It also provides the user with direct front panel access for installing and replacing sensors, and the ability to air calibrate the analyzer, all without the need for disassembly or tools.

Proprietary Sensor Technology

AMI’s patented oxygen sensors deliver unmatched performance for ultra-fast response times, accuracy, and reliability. Every sensor undergoes an intense battery of tests to ensure they meet our strict quality control standards. Our trace and percent oxygen sensors operate safely, accurately, and reliably in inert or flammable gas streams, even when containing high levels of H2S - up to 500 ppm, for their entire warranted life. This eliminates the need for a maintenance intensive H2S scrubber that competitive oxygen analyzers require.

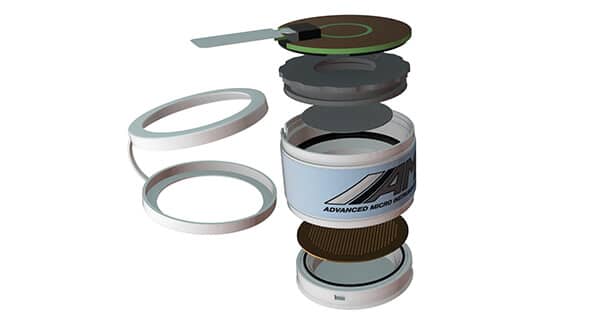

technology sensor render exploded

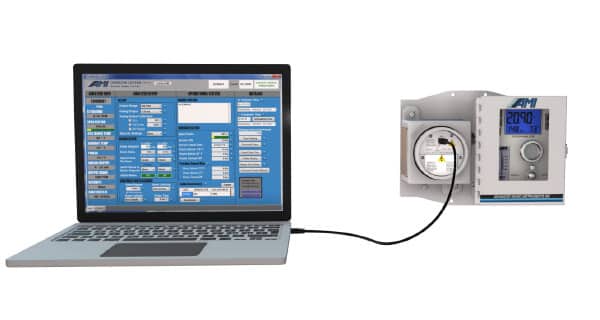

technology laptop connected

ALL THE ADVANCED FEATURES FOR ONE LOW PRICE

The MODEL 210BX Percent Oxygen Analyzer comes loaded with a full suite of advanced features without the typical ‘up charges’. The standard features include: 4-user selectable analog output ranges, large backlit LCD, dual independent alarm relay contacts, comprehensive alarm logic (fail safe or non-fail safe, latching or non-latching and independent alarm delays), alarm bypass, and 3 levels of security settings. Automatic data logging provides detailed time- stamped records of O2 measurement, gas pressure, temperature, supply voltage and power brown-out history. All these features can be accessed with AMI’s powerful COMMAND CENTER software, which works universally across all AMI analyzers.
