Temperature Sensors
Thermocouples & RTDs
Thermowells
Sample Probes

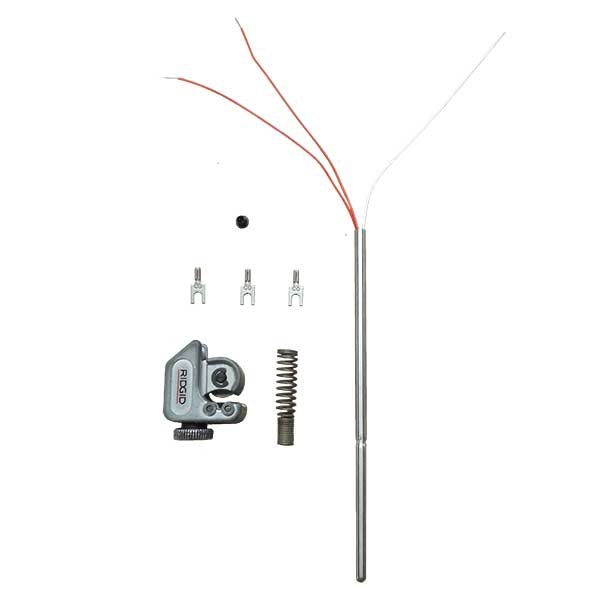

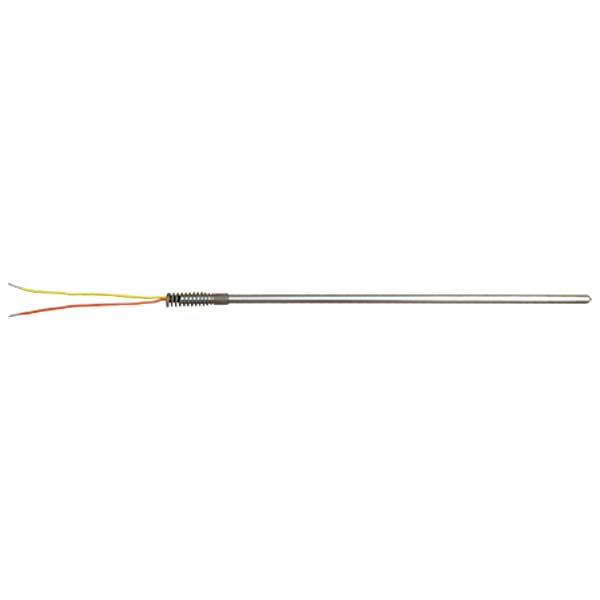

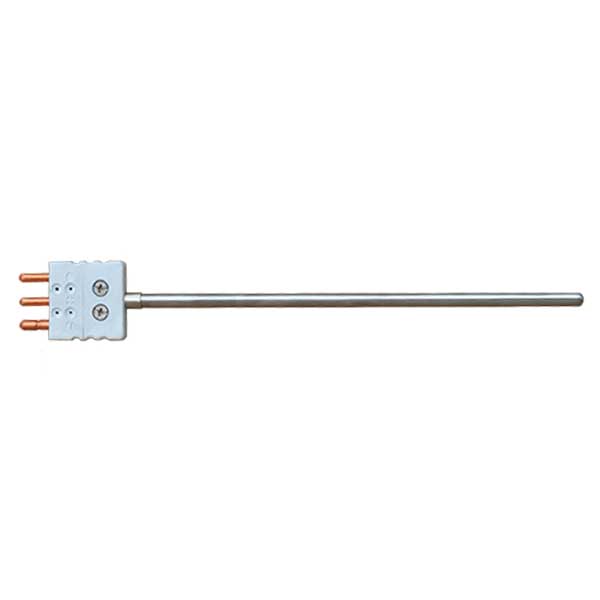

Thermocouples Thermocouples operate on the principle of the Seebeck effect, which states that when two dissimilar metals are joined at two junctions and the temperature is different at each junction, then a current will flow through the metals (known as EMF). SOR can provide a replacement for any failed thermocouple, RTD, or temperature assembly. Field Adjustable Thermocouple Thermocouple Specifications: Wire Type: Fiberglass insulated 20 gauge solid Sheath: 0.250” (6.4 mm) OD 316 stainless steel Maximum Temperature: 900°F (482ºC) Spring Loaded Thermocouples Thermocouple with Plug Model 1100 Thermocouple with Leads Model 1200 Download Temperature Sensor Catalog
RTD's All RTDs are 100% tested to ensure that the functionality of the product has not been affected by the manufacturing process. The standard sheath material on all RTDs specified in this section is 316SS. Other sheath materials and coatings are available. Elements are either thin film or wire wound, depending on the style RTD selected. Thin film elements are used in all constructions unless otherwise specified. Each RTD is supplied with a heavy duty spring. Field Adjustable RTD Sensor Element Industrial Style RTD Sensor Element with Spring Model 1150 RTD Sensor Element with Plug Model 1250 RTD Sensor Element with Leads

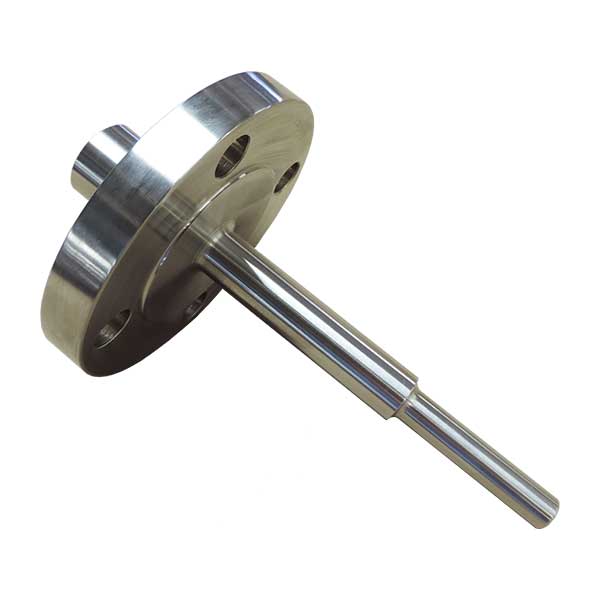

Thermowells SSi basic thermowell types are threaded, flanged, socket weld, weld-in, sanitary, and Van Stone. Thermowell stem designs (a portion of the well that extends into the process) are available in straight, stepped, or tapered styles. A wide selection of materials is available to meet virtually any application–including Brass, 304SS, 316SS, Alloy 600, Hastelloy B &C, Monel, HR160, Alumina, HR160, and many others. Basic Thermowells Pipe Thermowells Sensor, Thermowell and Transmitter Options

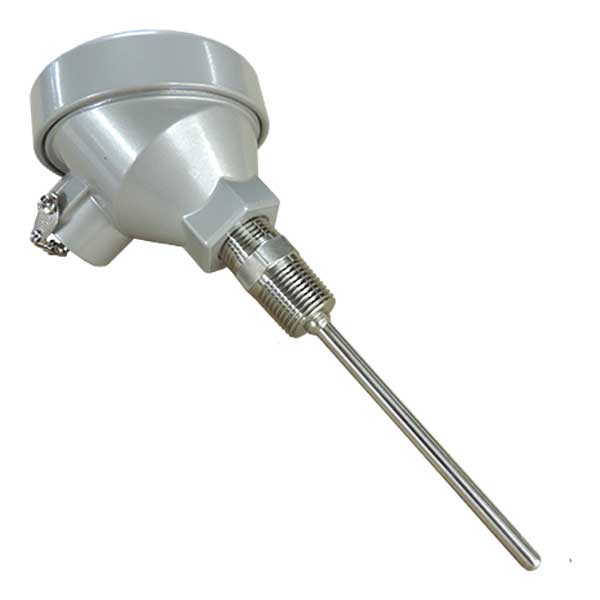

Sensor Assemblies SOR temperature sensor assemblies may include a connection head, optional HART transmitters, a sensor, and an optional thermowell or protection tube. Assemblies have been designed for high vibration, high temperature and general purpose applications. A temperature sensor assembly can provide temperature measurement, local indication, (temperature transmitter) programmable transmission, and process protection and isolation all in one package. 1400 Series Temperature Sensor Assemblies High Temperature Sensor Assemblies Model 1340 Remote Mounted Sensor Assembly Sensor Assemblies with Thermowells Sensor Pipe Well Assemblies

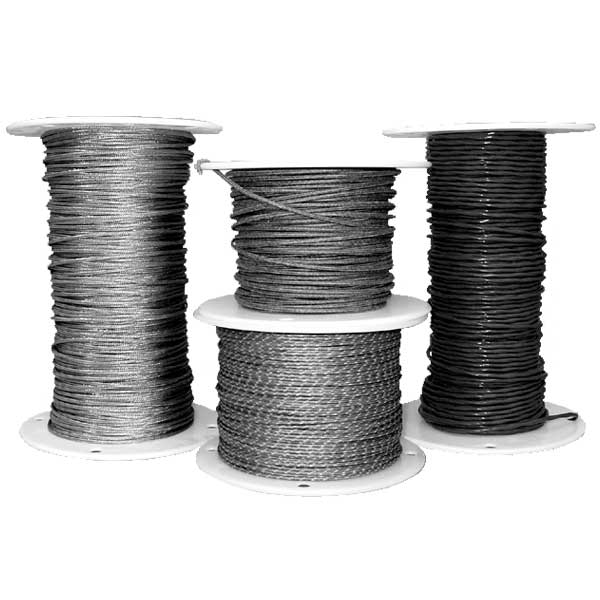

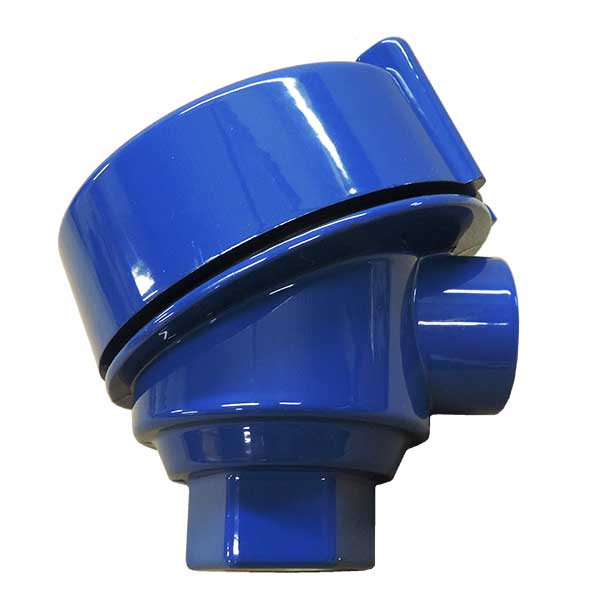

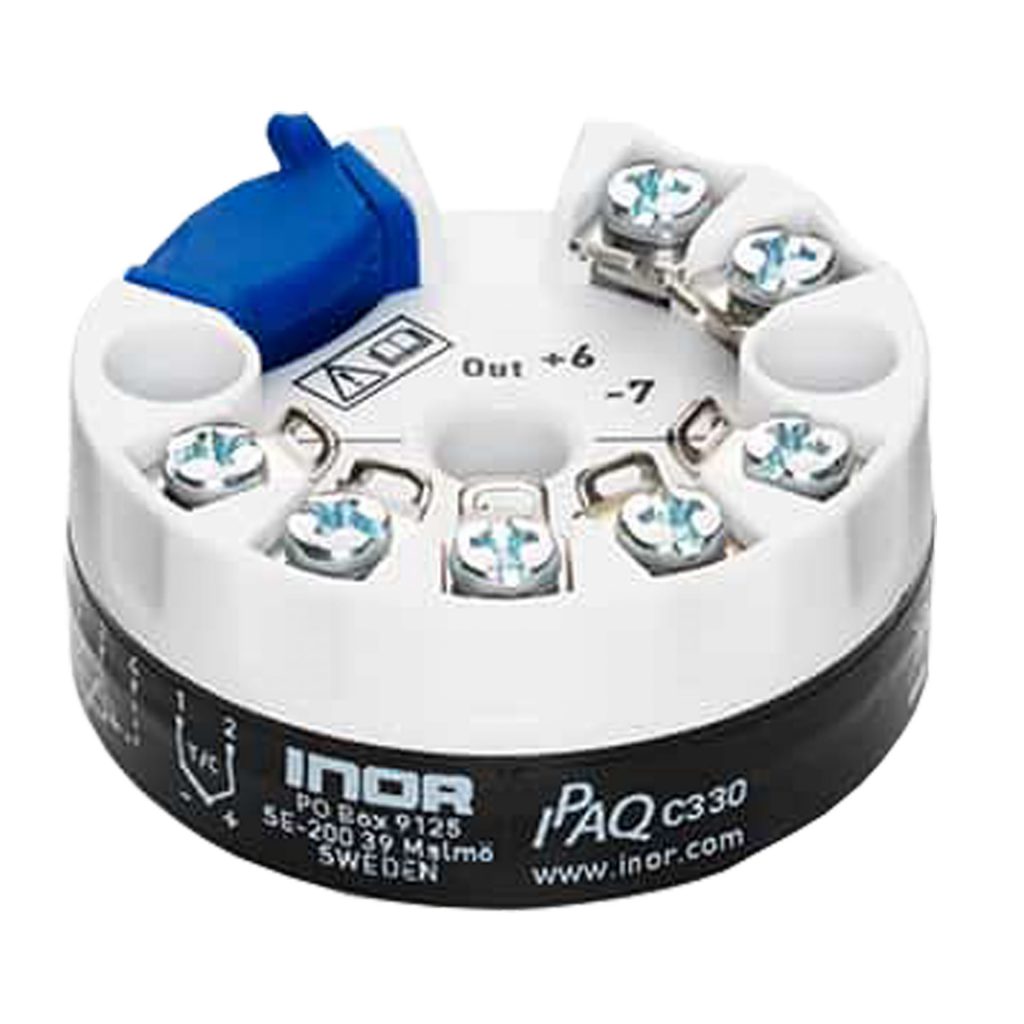

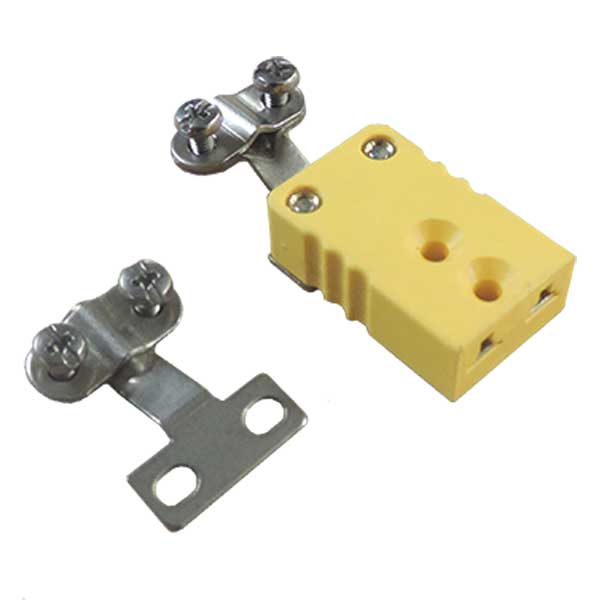

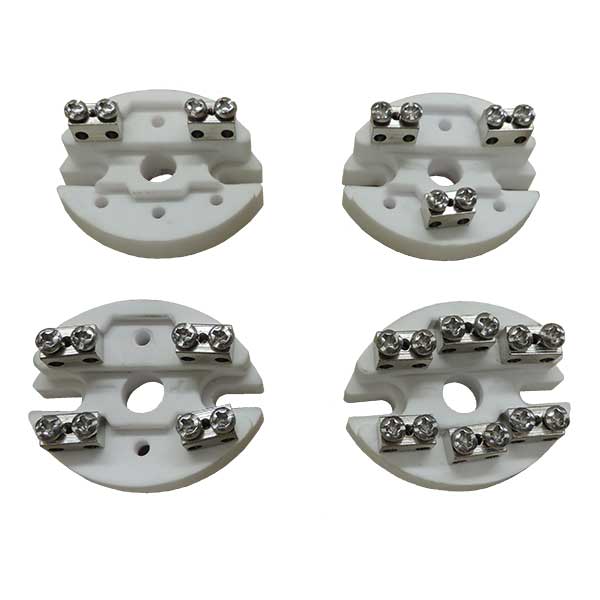

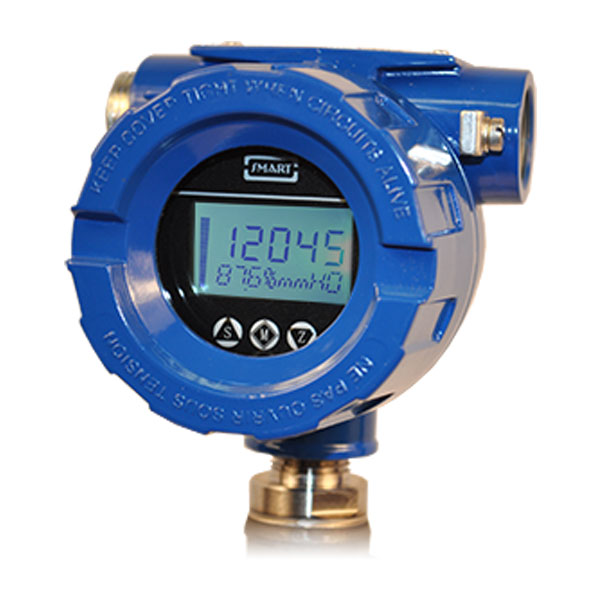

Assembly Options Connectors, accessories and mounting and assembly options are available for separate purchase from SOR. SOR offers a wide selection of plug, jacks and brackets with temperature ratings of up to 1200ºF (650ºC). Connection Heads Models: Various Ranges: Ingress Ratings (dependent on model): NEMA 4X and IP68 Certifications: Approvals (dependent on model): Class 1, Division 1, Groups B, C, & D and Class 2, Division 1, Groups E, F, & G. In-Head Displays Models: LPI, LPIX, BPI, BPIX, LPCX In-Head Temperature Transmitters Models: PT, HC, LCP Certifications: NAMUR Compliant Sensor Connectors and Accessories Sensor, Thermowell and Transmitter Options Terminal Blocks and Extensions Thermocouple Extension Wire

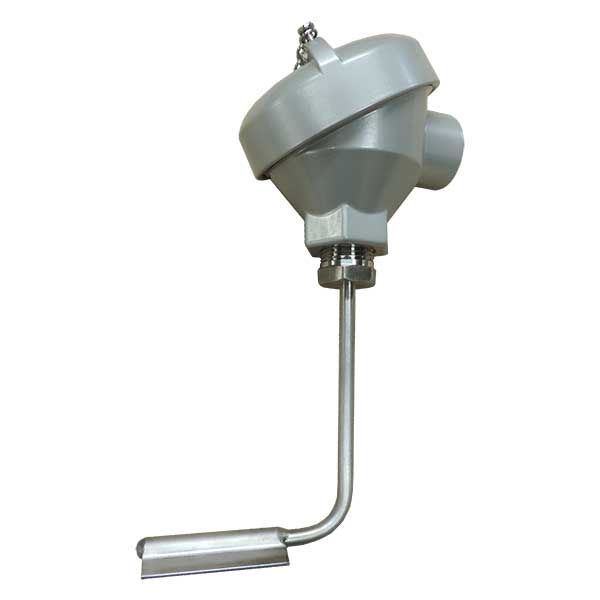

Specialty Sensors Heat Trace Sensor Models: 1500, 1500R Heavy Duty Industrial Magnet Models: 1280, 1290 Multipoint Sensor Assemblies Models: 2020, 2030, 2040 Oil Seal Thermocouple Models: 1312, 1314 Surface Pipe Clamp Models: 1550 Tubeskin Thermocouple Models: 1510, 1520 Washer Thermocouple Models: 1310

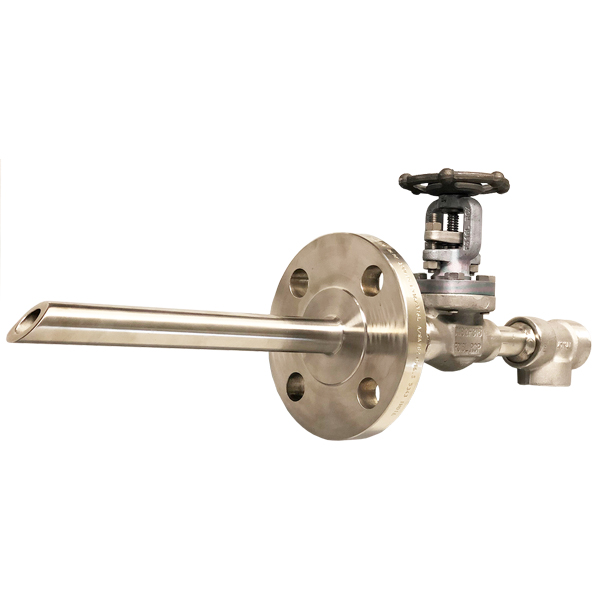

Sample Probes SSi sample probes are used in applications where a representative sample needs to be extracted from a process. Using a sample probe with a valve in a nozzle allows for simple and controlled extraction. Manufactured in Houston, the heart of the industrial Gulf Coast in Texas, SSi sample probes are built of high-quality materials so they stand up to the materials being sampled. Application engineering assistance is available including wake frequency calculations and custom probe design such as: Flanged or threaded style Retractable style Single or multiple valves Additional functionalities such as pressure or temperature measurement Wide variety of materials are available Customized bore diameters
